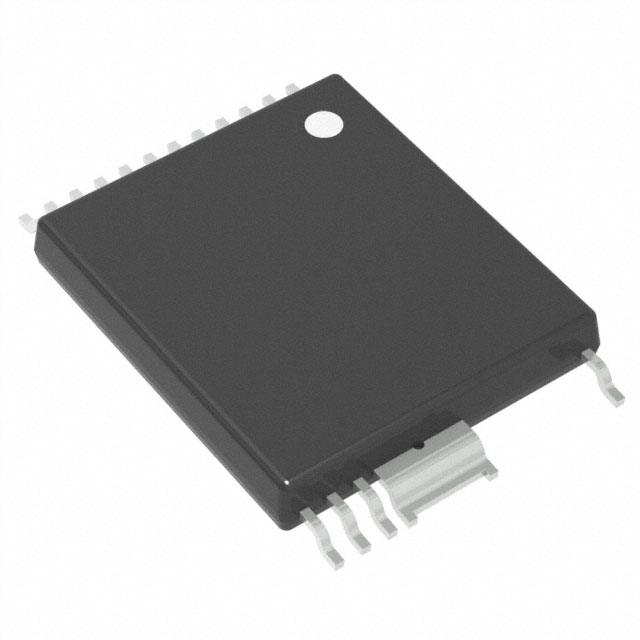

BRD1160C-TL
| ： | BRD1160C-TL |
|---|---|
| ： | Full Half-Bridge (H Bridge) Drivers |
| ： | Power Integrations |
| ： | IC HALF BRIDGE |
| ： | - |
| ： | Tape & Reel (TR) |
| ： | 1 |
| TYPE | DESCRIPTION |
| Mfr | Power Integrations |
| Series | BridgeSwitch |
| Package | Tape & Reel (TR) |
| Product Status | ACTIVE |
| Features | Bootstrap Circuit |
| Package / Case | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads |
| Mounting Type | Surface Mount |
| Interface | Analog, Logic, PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Rds On (Typ) | 6.84Ohm LS, 6.84Ohm HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 1A |
| Technology | Power MOSFET |
| Voltage - Load | 600V |
| Supplier Device Package | InSOP-24C |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Load Type | Capacitive and Resistive |
